High-accuracy position and motion monitoring with inertial support. The R6 NAV PRO Compass system redefines maritime navigation, delivering cutting-edge accuracy and navigational safety for professional mariners.
The powerful DGNSS sensor/compass delivers exceptional precision navigation required for ports and docking operations, while its advanced integrity protection ensures resilience against jamming and spoofing interference, providing secure and uninterrupted positioning.

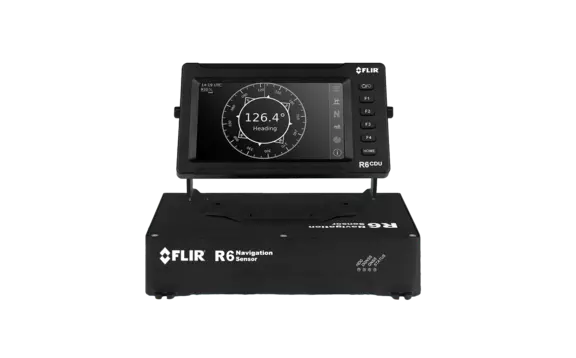

The R6 CDU (Control and Display Unit) combines the high quality display with a user-friendly design to simplify operations with intuitive controls. The 7-inch sunlight-readable touch display presents clear, precise data, and supports central dimming. It supports up to 4000 waypoints and 128 routes.
The built-in system web interface can be used for optional configuration and control.
Multi-GNSS Reception, supporting GPS, Galileo, Glonass, BeiDou, QZSS and NavIC (IRNSS) for global coverage and redundancy.
Multi-Frequency Capability, operating across L1, L2, and L5 bands for improved accuracy and reliability.
Corrections supported: SBAS, IALA Beacon, Atlas L-band, Galileo HAS, and local RTK services to ensure precise positioning.
The R6 CDU displays real-time ship position and movement data with high accuracy, as well as distributed to ECDIS, ARPA, and other onboard systems via standardized network and serial interfaces.
The integrated I6 IMU (Inertial Measurement Unit) delivers precise vessel orientation and motion tracking, enhancing navigation reliability.
Maintaining secure positioning in GNSS-compromised environments is critical. Verified through third-party testing, R6 NAV PRO systems are able to maintain valid positioning even under multi-band jamming, and outperform single-band receivers that are significantly vulnerable to jamming.
R6 NAV PRO systems offers advanced signal filtering and noise suppression, real-time jamming detection, alerts and mitigation across L1, L2, and L5 bands.
For secure positioning in compromised waters, R6 NAV PRO Compass stands out as the market-leading type-approved option together with the R6 NAV PRO RTK and R6 NAV NEO.
High performance DGNSS Compass Navigator.
Powerful DGNSS Compass Navigator. Inertial enhanced motion monitoring with top-tier accuracy for position, speed, course, heading, and rate of turn with type-approved THD.
R6 NAV PRO Compass System & R6 NAV PRO Compass+ System (with IMU) share the same basic features
| Dual antenna DGNSS Multi-GNSS and Multi-Frequency receiver. |
| Supports GPS, Glonass, Galileo, BeiDou, QZSS, and NavIC (IRNSS) across all frequecy bands L1, L2, L5. |
| Corrections supported: SBAS, IALA Beacon (DGNSS), Galileo HAS, Atlas L-band, Local RTK. |
| 1,100+ channels |
| Multi-band jamming detection across L1, L2, L5 bands |
| Spoofing detection |
| Multi-band resilience against GNSS jamming and spoofing |
Our R6 NAV NEO is built on the R6 NAV PRO Compass+, and is approved by the Panama Canal Authority (ACP), meeting the requirements for a Non-Portable Piloting Unit (NPPU) in the Panama Canal.
