From the reliable R6 NAV GNSS/DGNSS to the advanced multi-frequency R6 NAV PRO RTK, these solutions deliver exceptional precision and enhanced protection against jamming and spoofing.
The R6 NAV series is a next-generation line of GNSS receivers designed to deliver robust and precise IMO-compliant navigation. The expanding R6 NAV family is now replacing previous R4 NAV and R5 NAV systems that together have been the top choice for professional mariners for over two decades.

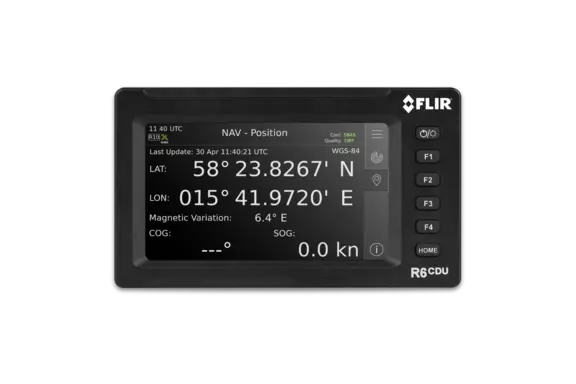

The R6 CDU (Control and Display Unit) combines the high quality display with a user-friendly design to simplify operations with intuitive controls. The 7-inch sunlight-readable touch display presents clear, precise data, and supports central dimming. It supports up to 4000 waypoints and 128 routes.
The built-in system web interface can be used for optional configuration and control.
The modular system is flexible for upgrades and makes updates easy. The console installation protects the receiver from harsh maritime elements, enabling years of reliable, low-maintenance operation.
The multi-function R6 CDU also supports a type-approved combined installation with R6 Supreme AIS and R6 NAV systems to reduce the number of displays on the bridge.
Maintaining secure positioning in GNSS-compromised environments is critical. Verified through third-party testing, R6 NAV PRO systems are able to maintain valid positioning even under multi-band jamming, and outperform single-band receivers that are significantly vulnerable to jamming.
R6 NAV PRO systems offers advanced signal filtering and noise suppression, real-time jamming detection, alerts and mitigation across L1, L2, and L5 bands.
For secure positioning in compromised waters, R6 NAV PRO RTK stands out as the primary type-approved option together with the R6 NAV PRO Compass and R6 NAV NEO.
| Reliable GNSS Navigator, suitable for standard maritime operations. |
| Multi-GNSS: GPS, Galileo, Glonass, BeiDou |
| Corrections: SBAS |
| 800+ channels |
| Basic jamming detection (L1) |
| High performance DGNSS Navigator, suitable for merchant fleets, cruise ships and workboats. |
| Multi-GNSS: GPS, Galileo, Glonass, BeiDou |
| Corrections: SBAS and IALA Beacon (DGNSS) |
| 800+ channels |
| Basic jamming detection (L1) |
| Can be upgraded to R6 NAV PRO RTK |
| High precision Multi-Frequency receiver for extreme precision and enhanced resilience against GNSS jamming and spoofing. |
| Multi-GNSS: GPS, Galileo, Glonass, BeiDou |
| Corrections supported: SBAS, IALA Beacon (DGNSS), Galileo HAS, Atlas L-band, Local RTK. |
| 800+ channels |
| Multi-band jamming detection across L1, L2, L5 bands |
| Multi-band resilience against GNSS jamming and spoofing |
Get in touch with our sales team or find a local distributor to explore how TransponderTech solutions can support your operations worldwide.
The R6 NAV NEO ensures reliable navigation for NeoPanamax vessels transiting the Panama Canal, with jamming protection and IMO-compliant precision.
The R6 NAV PRO Compass delivers high-accuracy position and motion monitoring with inertial support, redefining maritime navigation for professionals.
